  • AB ToolS APD16-120 Parallelogram 120.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia

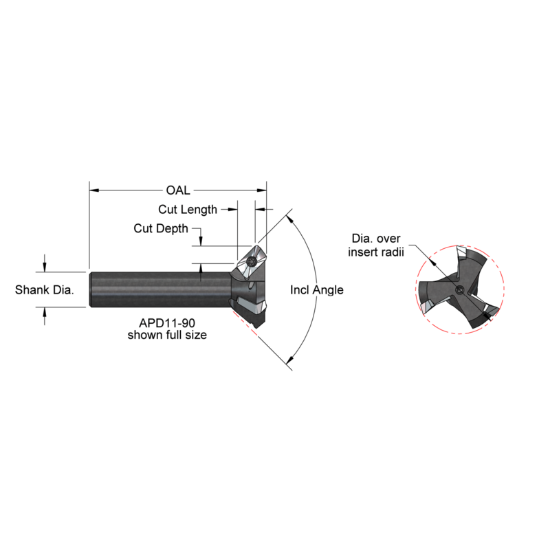

Picture of AB ToolS APD16-120 Parallelogram 120.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia

AB ToolS APD16-120 Parallelogram 120.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.7500 Positive 2.0000 50.80MM Cutter Dia

ANSI: APD16-120

ISO: APD16-120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPD16-120
Delivery date: 3-5 days
$460.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Application General Purpose
Shipping State California
Insert Type Positive
Application Back Chamfering, Chamfering
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.4800
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 2.0000 50.80MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Extractor T8
Insert Style AP
Fasteners & Connectors
Insert Screw 4MM-AP
