  • AB ToolS APD11-140 Parallelogram 140.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.5000 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

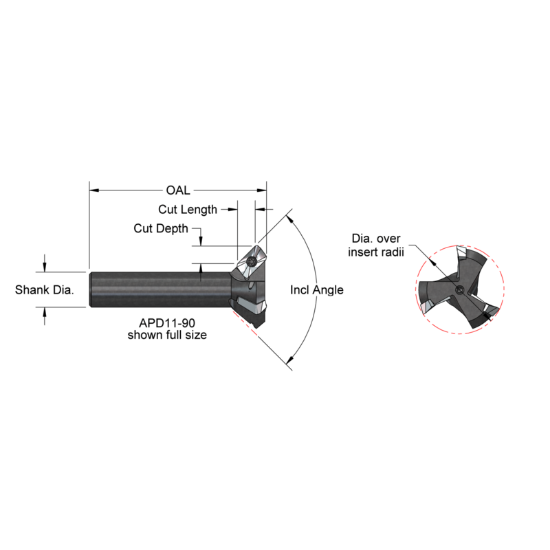

Picture of AB ToolS APD11-140 Parallelogram 140.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.5000 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

AB ToolS APD11-140 Parallelogram 140.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.5000 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

ANSI: APD11-140

ISO: APD11-140

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPD11-140
Delivery date: 3-5 days
$275.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert Type Positive
Application Back Chamfering, Chamfering
Insert/Tool Tool
Insert Application General Purpose
Shipping State California
Package Size 1
Dimensional Specifications
Cut Dia Min 1.3750 34.93MM - 1-3/8
Cutter Dia 1.3750 34.93MM - 1-3/8
Insert Size Ic 11
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Tool Material Steel
Length Of Cut 0.1100 2.79MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.3150
Flutes/Inserts 3
Dimension Description 1.375 x 0.500 x 0.110 x 2.500
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Extractor T8
Fasteners & Connectors
Insert Screw 2.5MM-AP
