AB ToolS APD11-120 Parallelogram 120.0°, Back Chamfer , Chamfer ing, End Mill Cylindrical 0.5000 Positive 1.3750 34.93MM - 1-3/8 Cutter Dia

ANSI: APD11-120

ISO: APD11-120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPD11-120
Delivery date: 3-5 days
$275.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Back Chamfering
Insert Type Positive
Package Size 1
Insert Application General Purpose
Shipping State California
Made In USA Yes

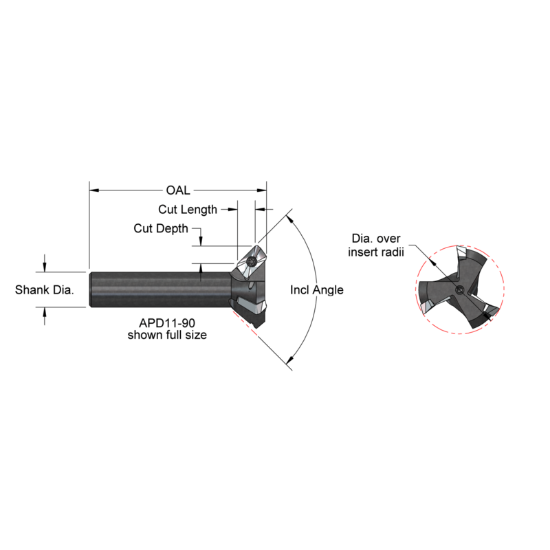

Dimensional Specifications
Depth Of Cut Max 0.2900
Tool Material Steel
Insert Size Ic 11
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Cut Dia Min 1.3750 34.93MM - 1-3/8
Dimension Description 1.375 x 0.500 x 0.160 x 2.500
Machine Side Connection Type Cylindrical
Cutter Dia 1.3750 34.93MM - 1-3/8
Length Of Cut 0.1600 4.06MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Extractor T8
Insert Style AP
Fasteners & Connectors
Insert Screw 2.5MM-AP
