  • AB ToolS APC16-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

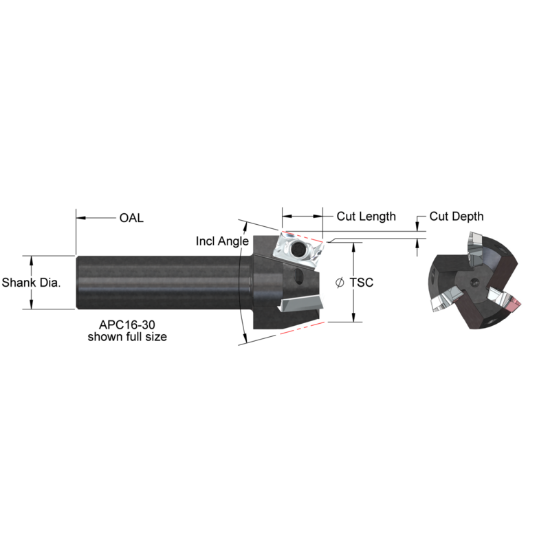

Picture of AB ToolS APC16-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

AB ToolS APC16-82 Parallelogram 82.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

ANSI: APC16-82

ISO: APC16-82

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPC16-82
Delivery date: 3-5 days
$460.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Chamfering
Insert Application General Purpose
Shipping State California
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3700
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AP
Extractor T8
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4MM-AP
