  • AB ToolS APC16-100 Parallelogram 100.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

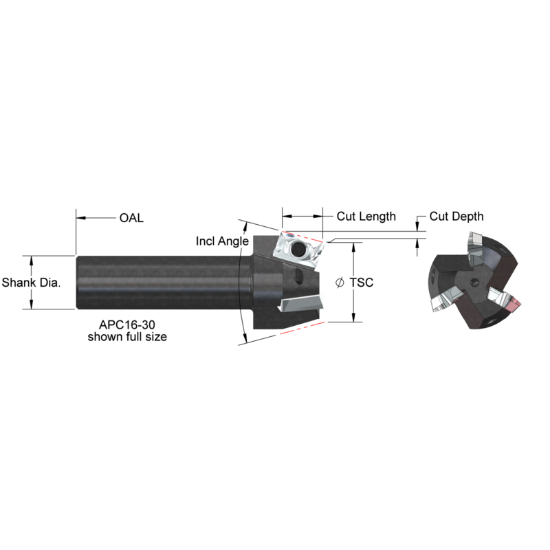

Picture of AB ToolS APC16-100 Parallelogram 100.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

AB ToolS APC16-100 Parallelogram 100.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia

ANSI: APC16-100

ISO: APC16-100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPC16-100
Delivery date: 3-5 days
$460.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State California
Package Size 1
Insert Type Positive
Made In USA Yes
Insert/Tool Tool
Application Chamfering
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.4300
Cutter Dia 1.0000 25.40MM
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Extractor T8
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4MM-AP
