  • AB ToolS APC11-60 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4 Cutter Dia

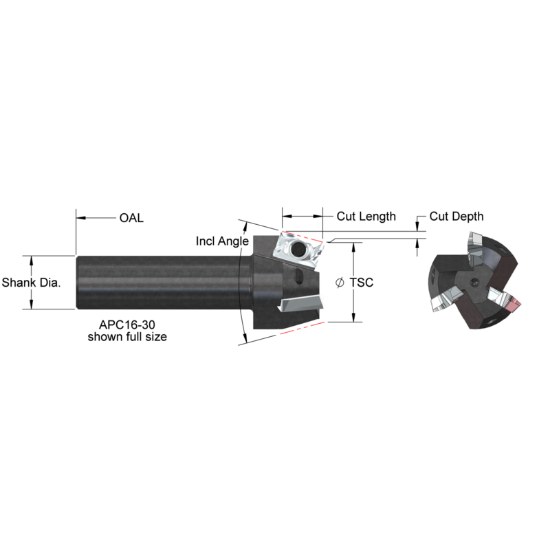

Picture of AB ToolS APC11-60 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4 Cutter Dia

AB ToolS APC11-60 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.7500 19.05MM - 3/4 Cutter Dia

ANSI: APC11-60

ISO: APC11-60

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPC11-60
Delivery date: 3-5 days
$275.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State California
Package Size 1
Insert/Tool Tool
Application Chamfering
Made In USA Yes
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1650
Tool Material Steel
Machine Side Connection Type Cylindrical
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Insert Size Ic 11
Cut Dia Min 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Extractor T8
Fasteners & Connectors
Insert Screw 2.5MM-AP
