  • AB ToolS APC11-150 Parallelogram 150.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05MM - 3/4 Cutter Dia

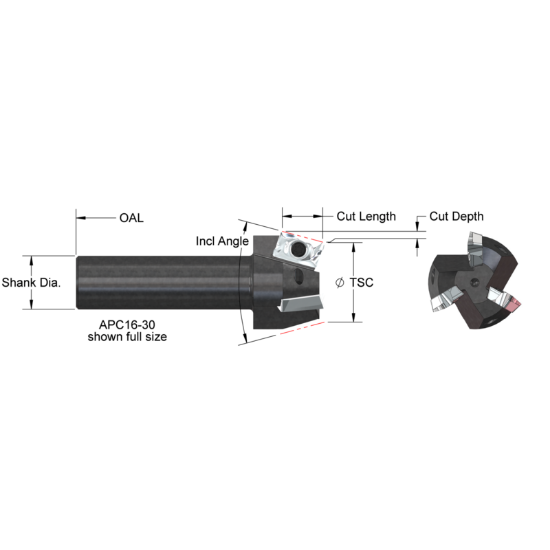

Picture of AB ToolS APC11-150 Parallelogram 150.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05MM - 3/4 Cutter Dia

AB ToolS APC11-150 Parallelogram 150.0°, Chamfer Mill End Mill Cylindrical 0.7500 Positive 0.7500 19.05MM - 3/4 Cutter Dia

ANSI: APC11-150

ISO: APC11-150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AB TOOLS
SKU: ABTAPC11-150
Delivery date: 3-5 days
$325.00

Features And Benefits

All purpose chamfer mills

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State California
Insert/Tool Tool
Application Chamfering
Made In USA Yes
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.3250
Machine Side Connection Type Cylindrical
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 11
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Extractor T8
Fasteners & Connectors
Insert Screw 2.5MM-AP
